BC - 105



BC - 105 ALL DETAILS -

X -1 - It is a 220V AC supply TB point.

X-2 - It is a Negative point of AC TB point.

X -11 - It is a Nutral link

Q2 - AC MCB

Q1 -  Isolater of Module.

K1 - It is a Power contactor.

X-3 -

X-4 -

K3 - It is using for fault detector auxiliary contactor.

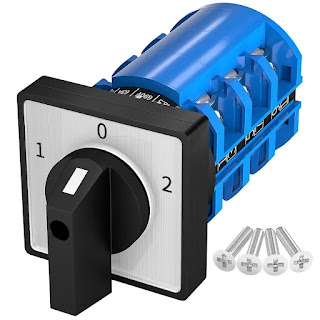

X-7 - Common point of L/R switch.

X-5 - Local Selection Switch.

X- 6 - Local sort select point.

X-8 - Locally Start.

X- 9 - Remote Selected

X-10 - Remote sort point

X-11 - Remote Start

K4 - Auxiliary contactor

K1 - Power contactor

H1 - On Indication

H2 - OFF Indication

H3 - Fault Indication

X-18 - ZSS 230V AC supply+Ve point

X-19 - Nagetive point of ZSS SWITCH

PLC TERMINATION DETAILS -

X-20 - 24V DC Supply

Q3 - Toggle switch

X21 - Q3 Out put common point of DC supply

X22 - Control supply Failure

X23 - Feedback for Belt Running.

X25 - Fault Circuit Healthy

X1 -1 - EM STOP

X1-2 - REMOTE SELECT

X1-3 - Left Side Pullcard Select

X1-4 - Right Side Pullcard

X1-5 - Left Side Beltsway

X1-6 - Right Side Beltsway

X1-7 - ZSS SWITCH

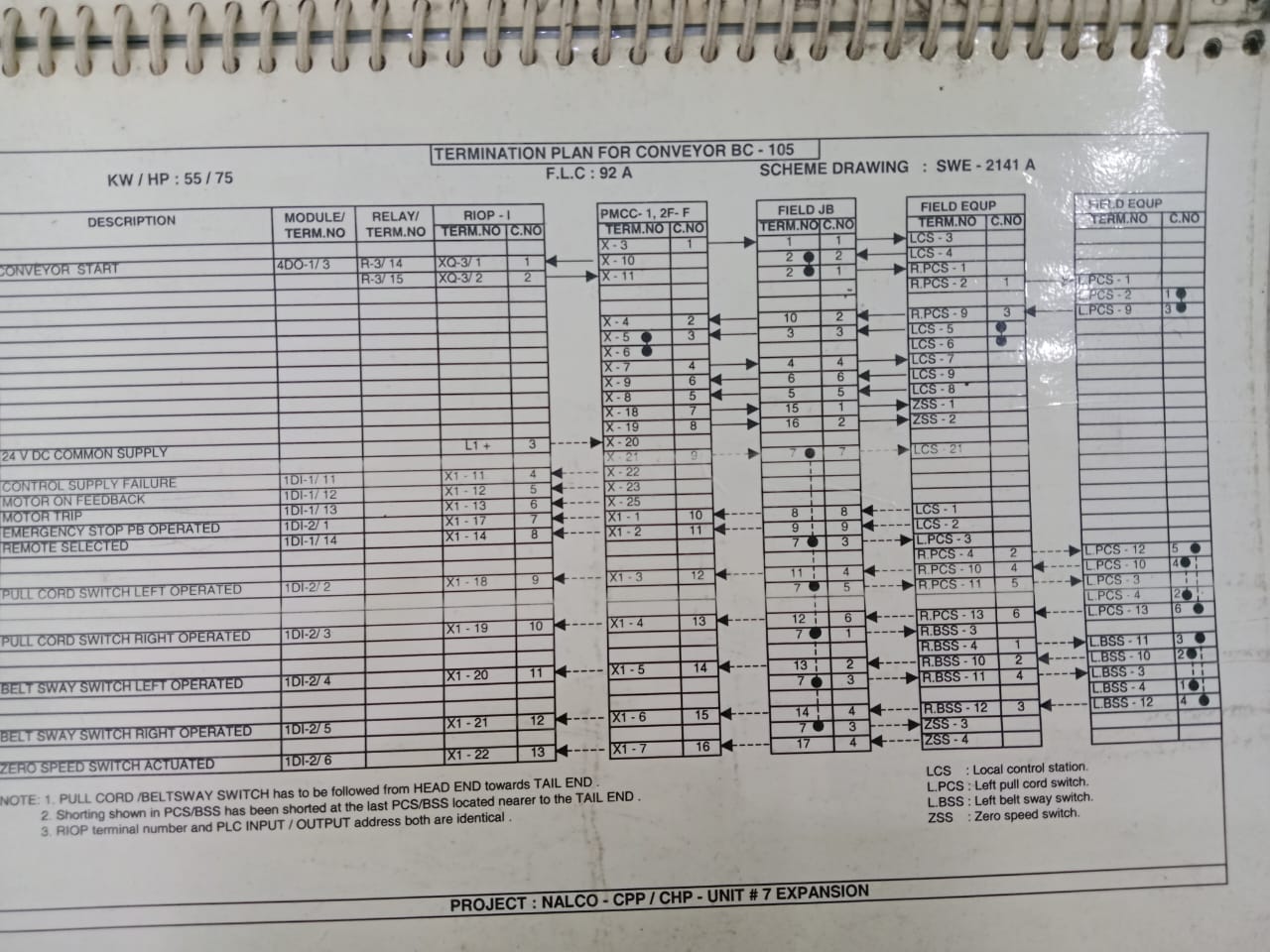

DRAWING

FERULING DRAWING - :
